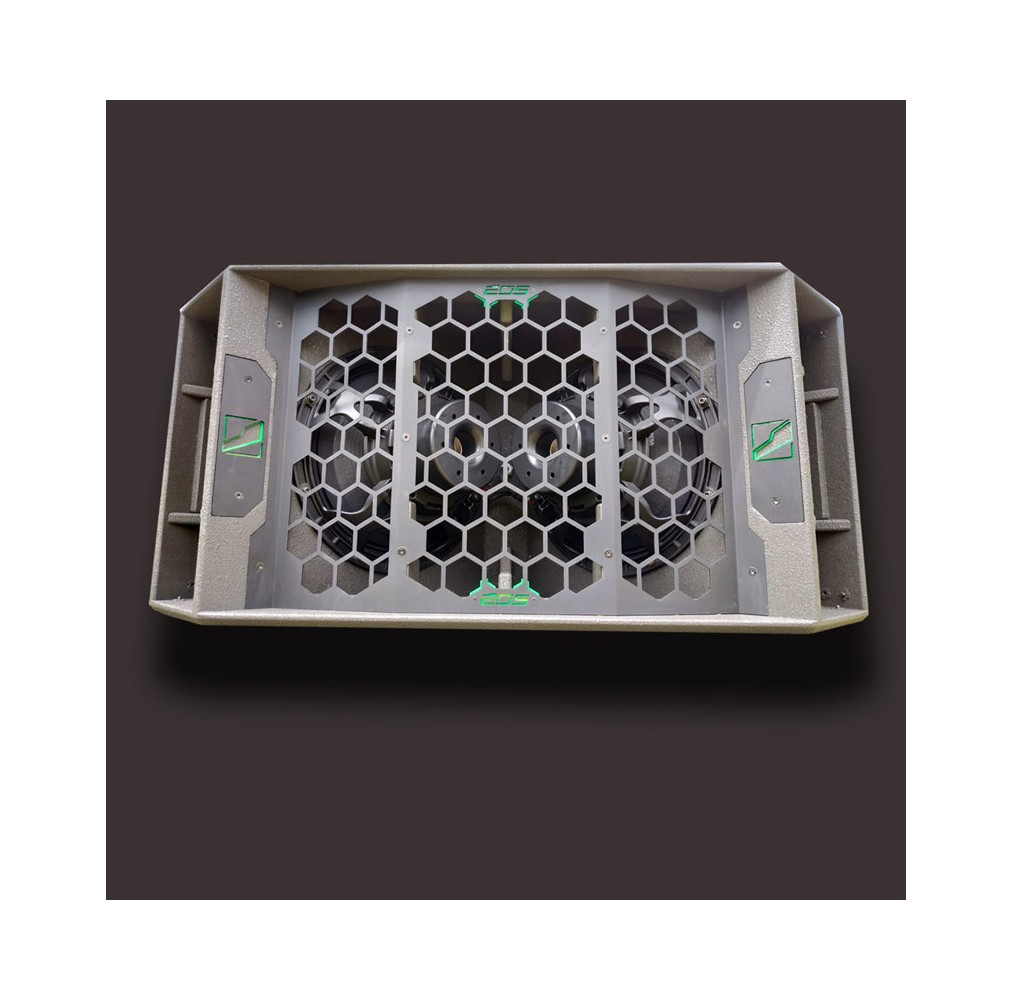

KB-2



- 2 x 15 "subwoofer

- Compact size

- 3200W AES / 4 ohm

- Frequency response up to 46Hz

- Detachable skateboard

- Couplable with SB-2 for extended response up to 25Hz

- Assembly in "Stack" mode (SB-2 / KB-2 / MT-12)

- Assembly in "Monitor" mode with CM-12 or ST-10

- Trapezoidal design

- Light weight 69kg

Description:

The KB-2 is a bass / kick type subwoofer.
Its effectiveness on is mainly found on low type areas hit.
Ideal for all types of electronic music, it can be used alone or combined
to SB-2 for an extended sub-bass response




With its 69kg and compact size,
it will fit under / on stage or stacked in EOS "Stack" format.
There are 3 phases going from one column
from 7.7kW to 23.1kW AES for extended response at 25Hz

KB-2

Data sheet

Frequency response
+/-3dB: 55Hz À 250kHz
F-10dB: 46Hz
Woofers
2 X 15″ neodymium
Maximum SPL
142dB @ 100Hz for 1 element "Half Space" (Calculated)
Construction
2mm steel grill
18 and 15mm birch plywood
Finition
PU painting EOS Grey
Connectors
2 X SpeakOn Neutrik
Size (W x H x D)
114,3 X 52 X 70 Cm
Weight
69kg
