M-SAT4i
- Satellite for fixed installation
- 100W AES / 8 or 16 ohm
- 2 x 4 " MTM mounting + dedicated phaseplug
- Frequency response 110Hz to 17kHz without EQ
- Conical pavilion 60 ° x 60 °
- Excellent size / power ratio
- Grill finishes on request
- Water and sun resistant
- Very good inter-element coupling
- 2 M10 attachment points for height fixing
- Hanging bracket with variable angle (optional)
Description:

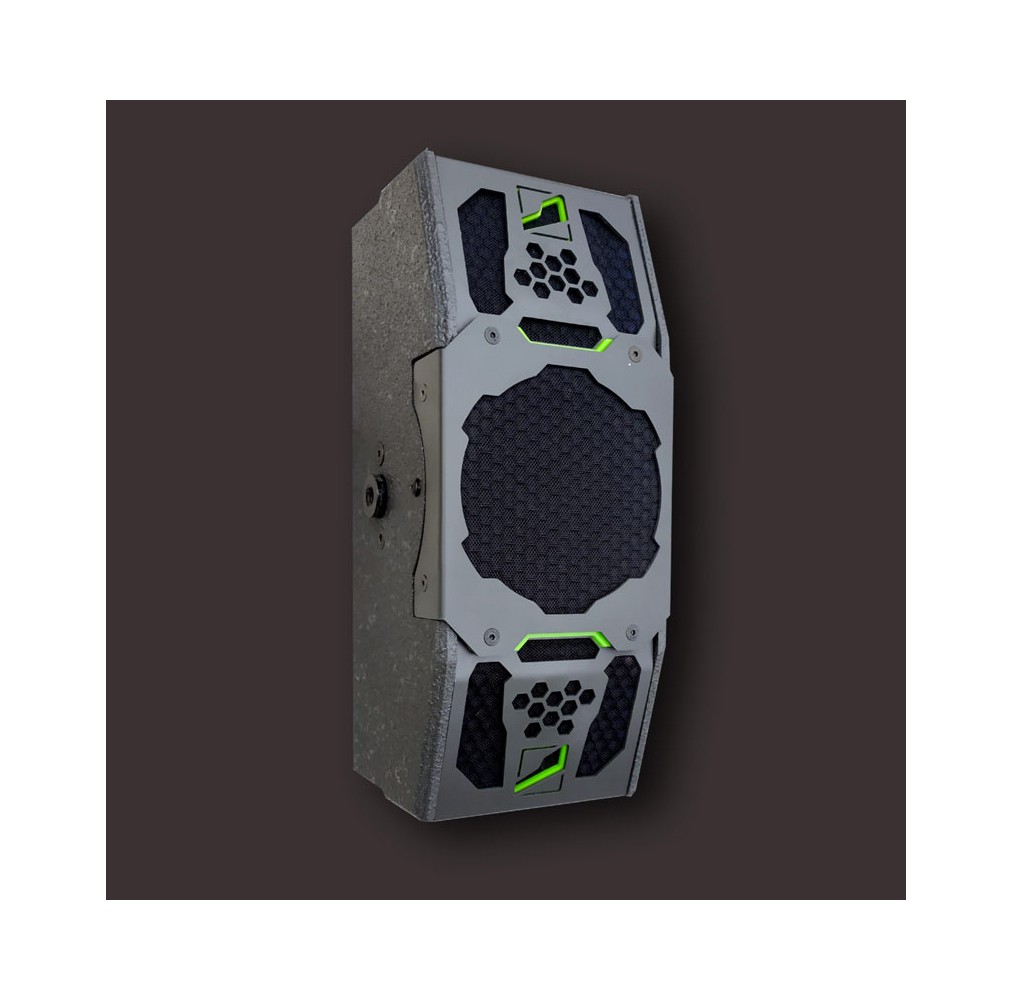

The M-SAT4i is a satellite speaker effective from 110Hz.
Its ultra compact format allows it to be installed
in any type of fixed or temporary location.
Its MTM assembly + phaseplug,
coupled with 1 "paved compression
allows it to obtain a stable response without EQ.
The 60 ° conical opening facilitates all types
installation or inter-element alignment
The acoustic mesh and membranes
treated against humidity make M-SAT4i an
enclosure capable of withstanding rain and sun
M-SAT4i
Data sheet
- Frequency response
- +/-3dB: 130Hz À 17kHz
F-10dB: 110Hz - Woofers
- 1" neodymium driver
2 x 4" neodymium magnets - Power
- 100W AES / 8 or 16 Ohm
- Dispersion
- 60 x 60°
- Construction
- 2mm steel grills
10mm birch plywood - Finition
- PU paintin EOS grey
- Connectors
- 2 X SpeakOn Neutrik
- Size (W x H x D)
- 13,4 X 32,6 X 13,3 Cm
- Weight
- 3kg without accessories
- Satellite for fixed installation
- 100W AES / 8 or 16 ohm
- 2 x 4 " MTM mounting + dedicated phaseplug
- Frequency response 110Hz to 17kHz without EQ
- Conical pavilion 60 ° x 60 °
- Excellent size / power ratio
- Grill finishes on request
- Water and sun resistant
- Very good inter-element coupling
- 2 M10 attachment points for height fixing
- Hanging bracket with variable angle (optional)
