STACK Phase 1



- 1 x SB-2+EXT

- 1 x KB-2

- 1 x MT-12 Stand

- 1 to 3 x MT-12

7700W / 9000W / 10.3kW AES

- Frequency response up to 25Hz

Description:

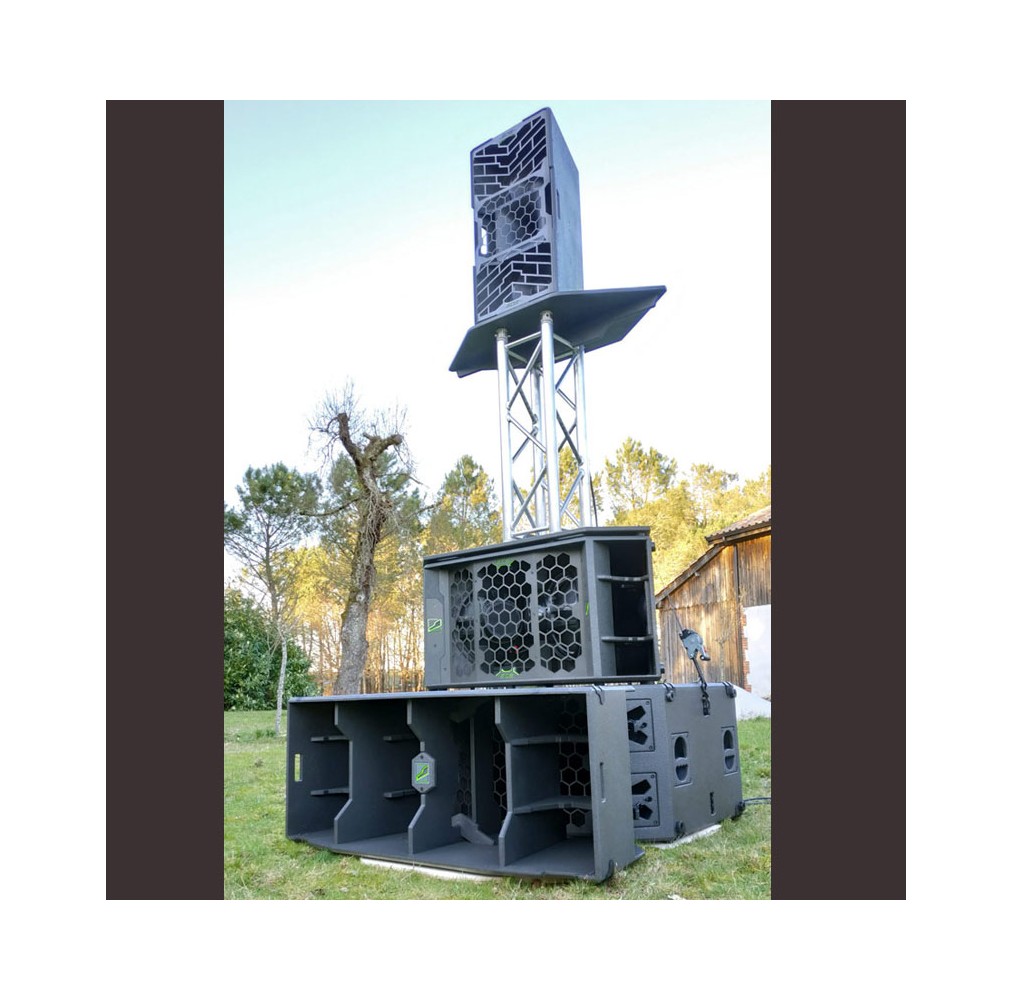

"STACK # 1" is a composite assembly
of a SB-2 with its extension, a KB-2, an adjustable MT-12 support
and from one to three MT-12 for a specific horizontal covering,
depending on the broadcast location.



STACK # 1:
-7700W AES with MT-12 up to 60 ° H
-10.3W AES with three MT-12 for coverage up to 120 ° H



Stack #1

Data sheet

Frequency response
+/-3dB: 29Hz À 17kHz
F-10dB: 25Hz
Power
7700 / 9000 / 10.3kW AES
Size (W x H x D)
115 X 296 X 154 Cm
